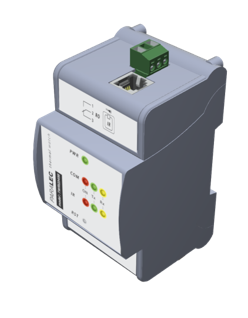

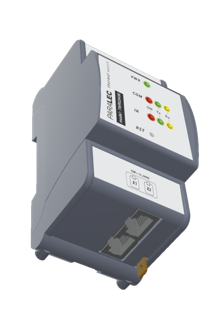

TWR-IR, TWR-DIN – Thermal Watch Infrared receiver, DIN-receiver

•1, 5 or 13 ports for IR-Receiver
•Modbus RS485 communication to connect to SCADA, BMS
•1 NO dry contact, 1 NC dry contact to connect to local alarm system
•12 to 24VDC power supply
•DIN 3 modules as per EN60715
•Can be used in environment up to 36 kV

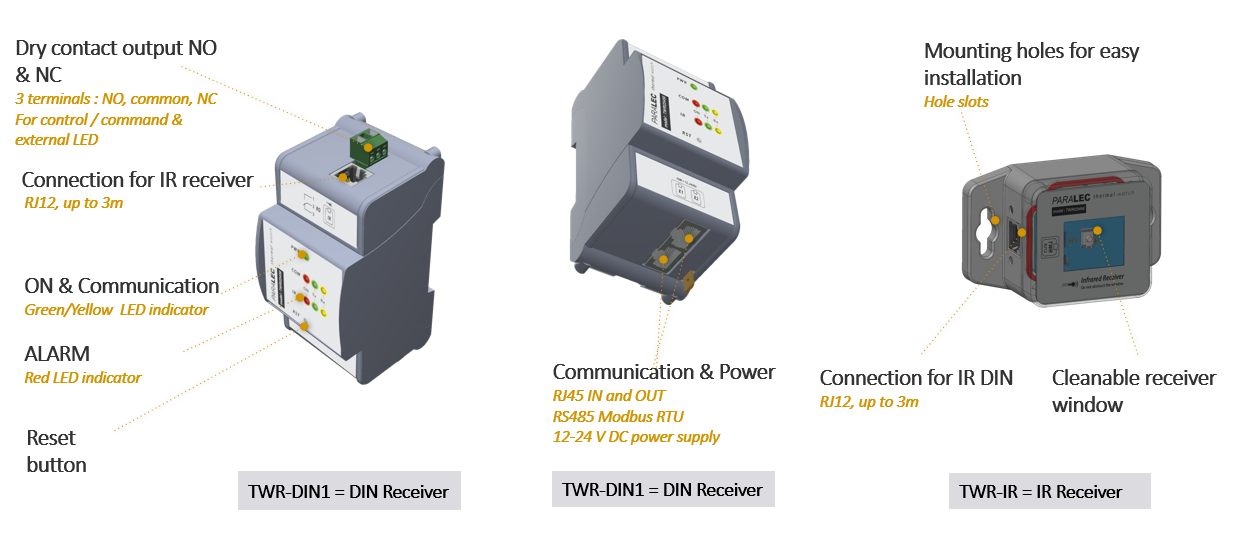

TWR-IR – Thermal Watch Infrared receiver is a device that will receive infrared signal from TWS sensor and transmit this information to main body – TWR-DIN DIN receiver.

TWR DIN-receiver is a device that connects infrared receivers. TWR-DIN can connect 1, 5 or 13 IR-receiver, allowing to install TW system in the electrical panels with a big number of compartments, for instance, motor control centers, large switchgears with few separated compartments (e.g., busbars compartment, incoming cables compartment, CB compartment, etc.).

TW DIN-receiver after transmits an ALARM signal to SCADA or BMS system by Modbus or to any other external system via dry contact output.

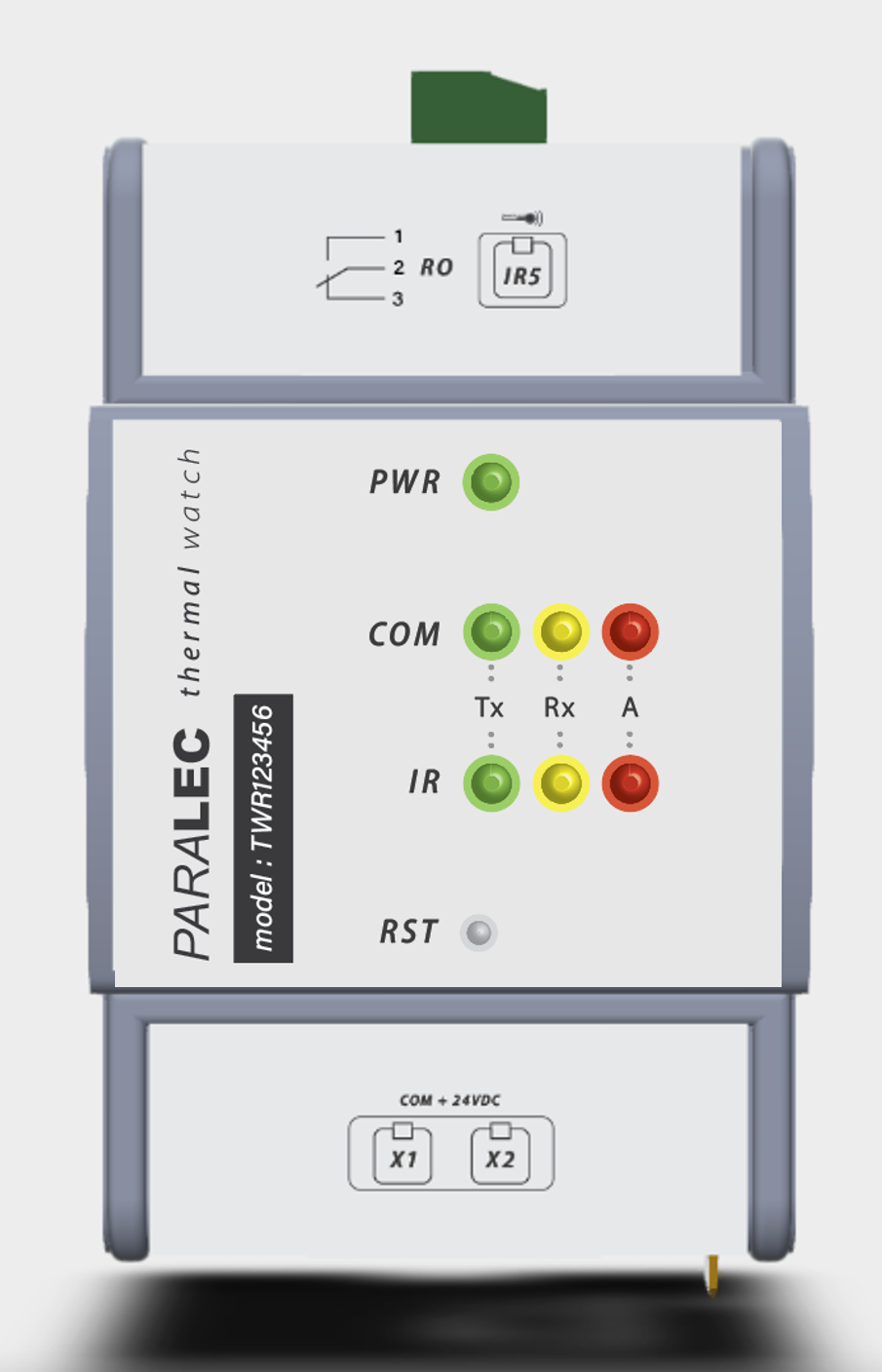

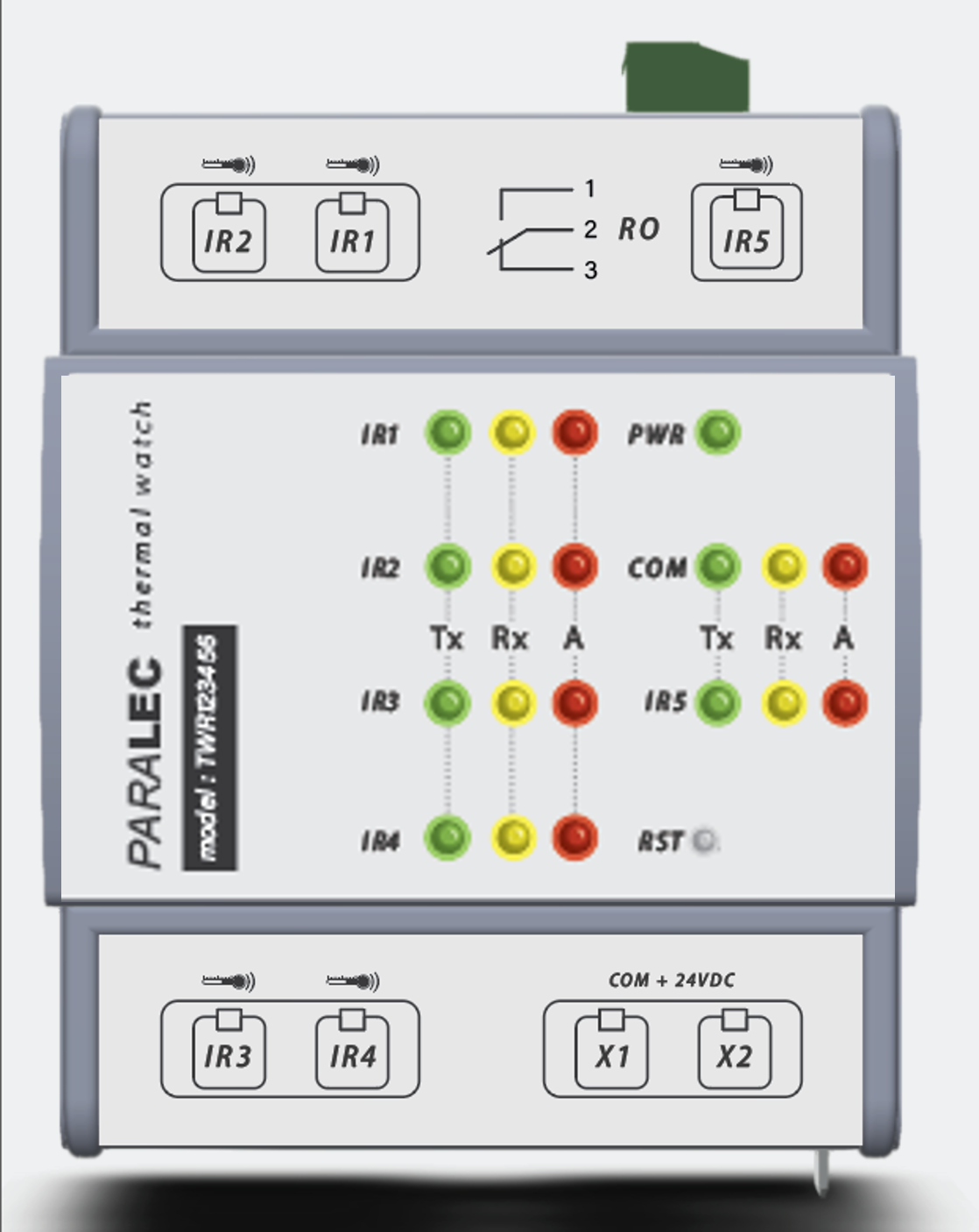

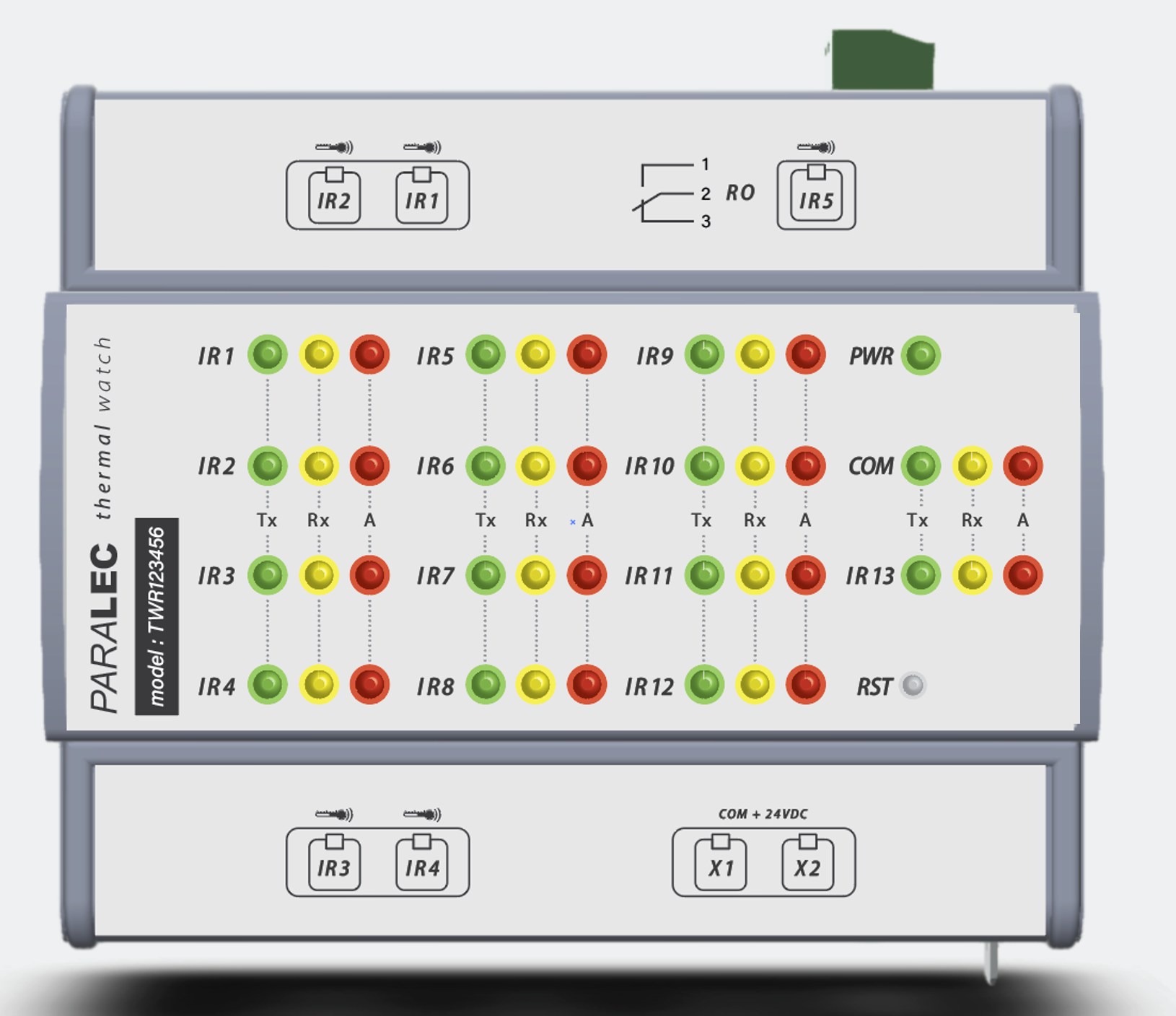

TWR-DIN1 = 1 IR receiver	TWR-DIN5 = 5 IR receiver	TWR-DIN13 = 13 IR receiver
MEMORY •288,000 measurement records •200 sensors send data every 1 hour for 2 months. •72,000 alarm records REPORTING FORMAT •Identification of TWS : 11bits, 4 digits, 0 to 2048 •Temperature: 8 bits, 3 digits, 0 to 128℃ •Battery : 1 bit, OK / NOK •Mode: 2 bit, Alarm / Commissioning / Measurement / Test
