Applications
The main field of FIPRES application is electrical panels. FIPRES can be installed in:
Low/medium voltage electrical panels:
- Switchgear cells,
- Main Distribution boards (MDB),
- Sub Main Distribution Boards (SMDB),
- Power Factor Correction panels,
- Motor control center panels (MCC),
- other types of panels.
Typical points that required the maximum of attention are:

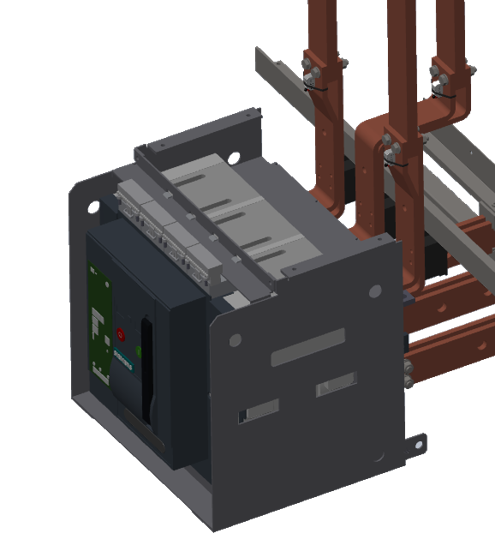

- Circuit Breaker (CB) contacts (especially with withdrawable contacts).
- Incoming/outcoming cables connection.
- Cable joints (incoming cables/cable feeders).
- Fuses contacts.
- Disconnector contacts.
- Capacitor banks.
Other points in particular cases could be:
- Current and voltage transformers.
- Transportation joints

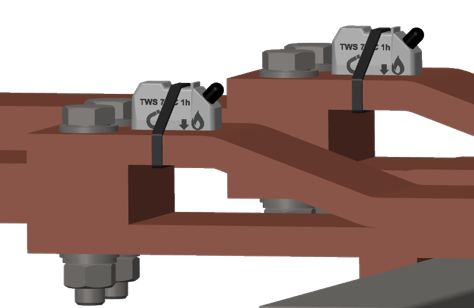

- Busbar-busbar connections.

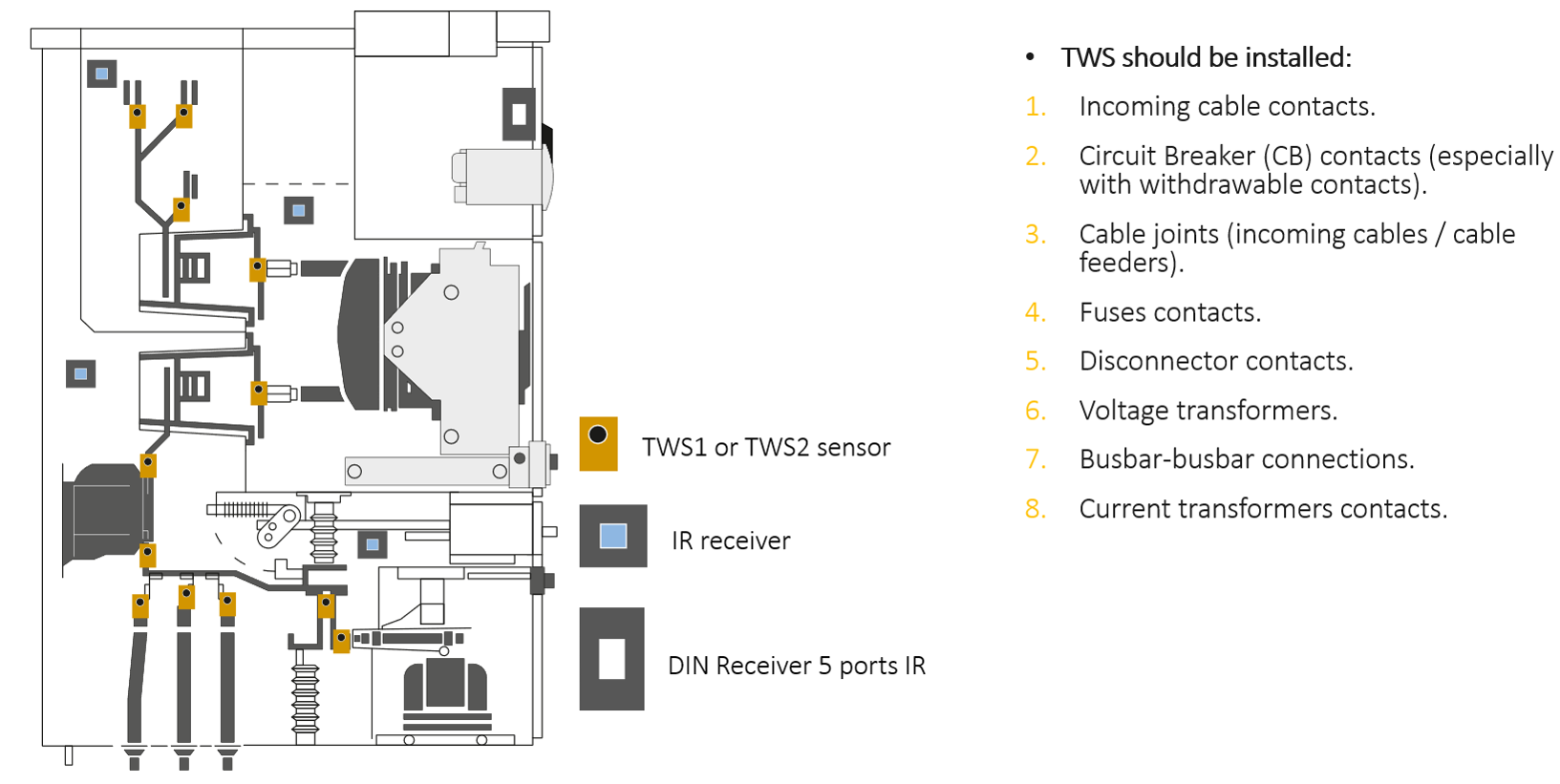

FIPRES Thermal Watch Installation example
One of the advantage of FIPRES comparing to devices with a similar purpose is the ease of installation even when it comes to retrofitting. It’s possible to equip all concerning points of equipment without compromises.

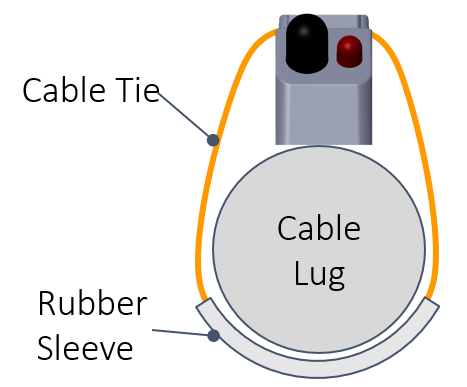

FIPRES Thermal Watch Installation pictures:
